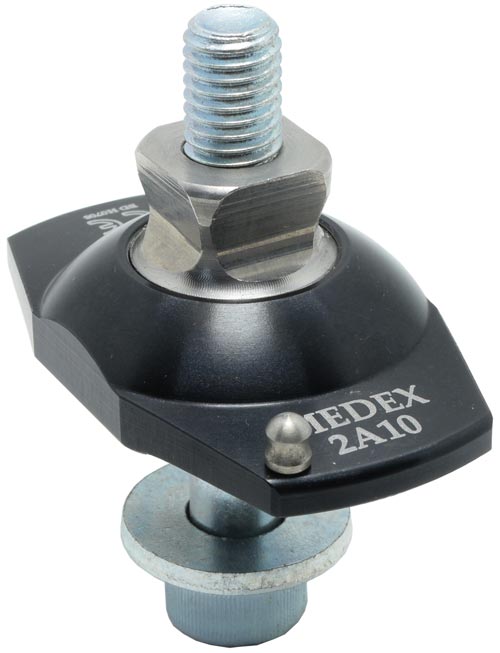

2A10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Aluminum |
106gr |
136kg/300lbs |
12mm |
|
|
 |

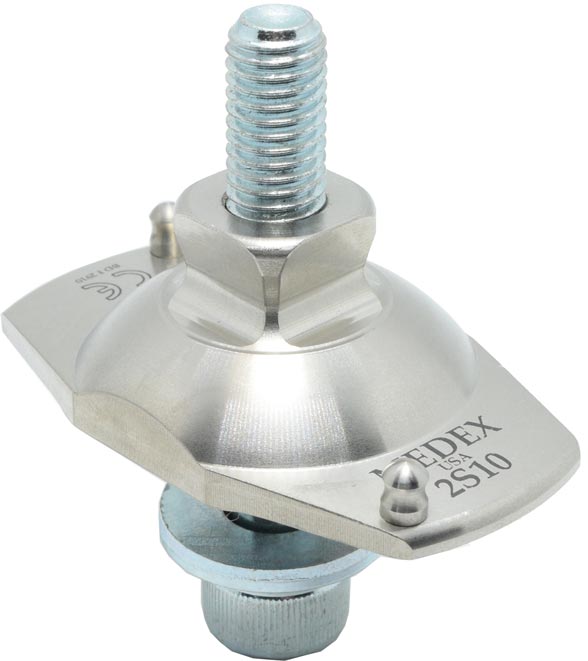

2S10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| S. Steel |
130gr |
136kg/300lbs |
12mm |
|
|
 |

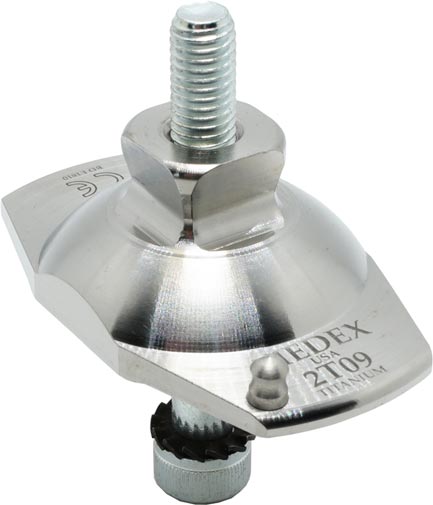

2T09
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8 (2T09) and M10 (2T/S/A10) bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
80gr |
100kg/220lbs |
12mm |
|
|
 |
2T10
Sach Foot Adapter
Connector between SACH Energy Storing Foot and pylon. Includes stainless steel M8-10 bolt, lock washer, and flat washer.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
93gr |
136kg/300lbs |
12mm |
|
|
 |

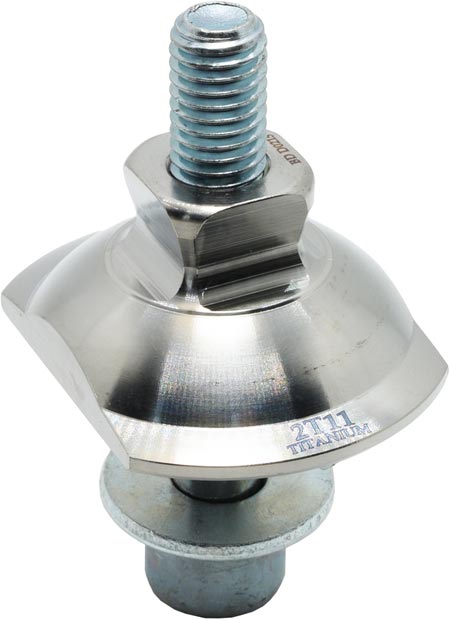

2T11
Sach Foot Adapter (round)
Includes stainless steel M10 bolt, lock washer, and flat washer. Weight of the component includes stainless steel bolt and washers.
| Alloy |
Weight |
Max Patient Weight |
Build Height |
| Titanium |
80gr |
136kg/300lbs |
12mm |
|
|
